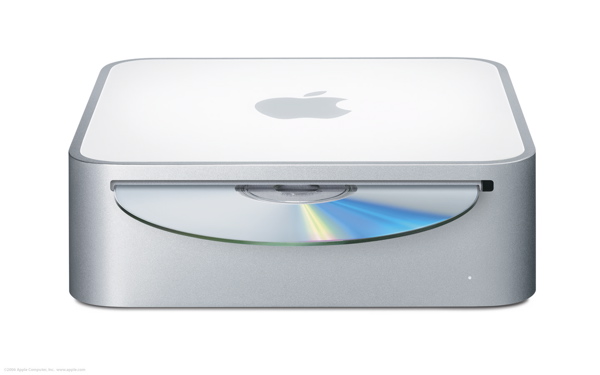

Mac mini (Early 2006)

Mac mini (Early 2006)

Introduced on February 28th, 2006, the Mac mini (Early 2006) is the first Mac available that contains either an Intel Core Solo or Core Duo CPU.

System Specs

Mac mini (Early 2006):

• Processory & Memory
  • CPU: Socketed 1.5 GHz Intel Core Solo or 1.67 GHz Intel Core Duo
  • Cache: 2MB shared L2 Cache (Full processor speed)
  • Bus Speed: 667MHz system bus
  • Memory: PC2-5300 (667MHz) DDR2 memory.

• Storage
  • Hard Drive Interface: Serial ATA hard disk drive
    • 60GB 5400-rpm Serial ATA hard drive on 1.5GHz configuration.
    • 80GB 5400-rpm (standard for 1.67 GHz), 100GB 5400-rpm, 120GB 5400-rpm drives optional
  • CD/DVD Drive: Combo (DVD-ROM/CD-RW) or Superdrive (DVD+R DL/DVD±RW/CD-RW) (SuperDrive standard for 1.67 GHz)

• Communications
  • Wireless: 54-Mbps AirPort Extreme Card (802.11g standard)
  • Bluetooth: Bluetooth 2.0+EDR (Enhanced Data Rate)
  • Networking: 10/100/1000 Gigabit BASE-T Ethernet

• Graphics and Video
  • Graphics Chipset: Intel GMA950 with 64MB of DDR2 SDRAM shared with main memory - supports Core Image

• Peripheral connections
  • Firewire: (1) FireWire 400 port
  • USB: (4) USB 2.0 ports

• Audio
  • Audio Chipset:
  • Audio Output: Headphone/optical digital audio output

Known Issues

None Yet

Go here for further information on the Mac Mini DVI.
